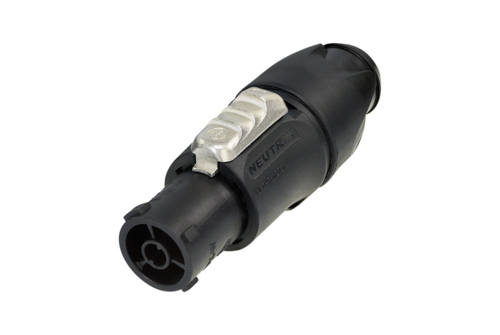

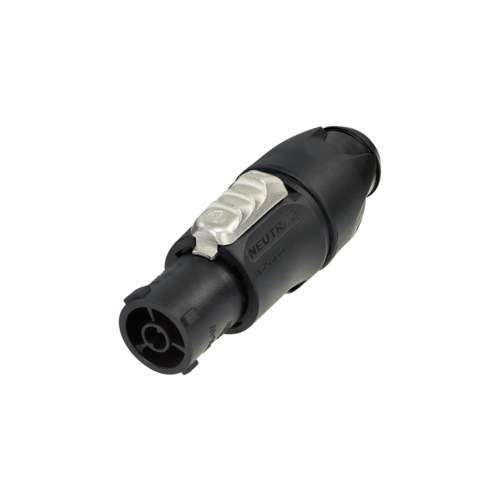

The powerCON TRUE1 TOP is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Keyed for Power IN, screw terminals, up to 16 A (USA: 20A)

The powerCON TRUE1 TOP is a single-phase connector with breaking capacity (CBC).

Features & Benefits

• IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
• Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
• Heavy duty sealed power connector for harsh and demanding environment
• Uses high impact UV-resistant materials
• Extremely robust and reliable cable retention
• Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
• Superior NEUTRIK quality standard

Data sheet
