Features & Benefits

  • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
  • Professional look and compact space saving design, based on the XX Series
  • Rugged diecast shell for best reliability.

Technical Information

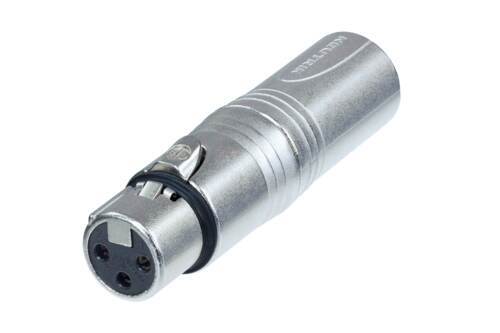

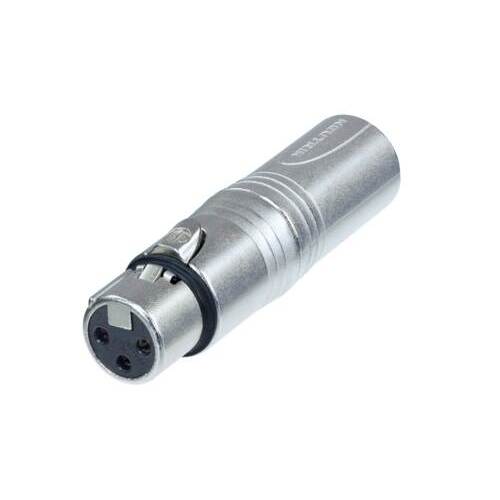

Product



Title

NA3FM

Connection Type

Adapter



Electrical



Contact resistance

≤ 3 mΩ

Dielectric strength

1,5 kVdc

Insulation resistance

> 2 GΩ



Mechanical



Wiresize



Locking device

Latch lock



Material



Contact plating

2 µm Ag

Contacts

Bronze (CuSn6) (female)

Insert

Polyamide (PA 6.6 30 % GR)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

gal Cu/Ni



Environmental



Temperature range

-20 °C to +65 °C



NEUNA3FM

(NEUNA3FM)

SKU NEUNA3FM
Brand Neutrik
Unit Of Measure ea
